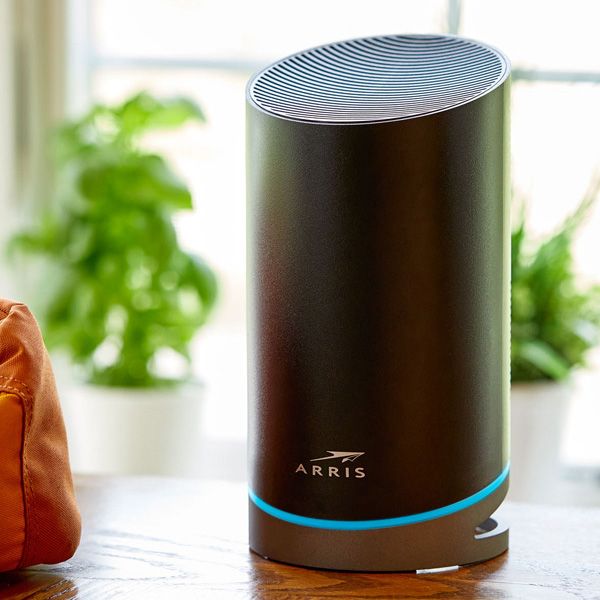

Arris SURFboard mAX Dash (W130)

Released Jun 2019

The SURFboard mAX Plus (W130) is an AX7800 Tri-band Mesh Wi-Fi 6 system. It uses an 8-stream Wi-Fi 6 design per unit with a dedicated 4x4 backhaul to provide gigabit-class speeds and extensive coverage up to 6,000 square feet in a two-unit configuration.

Wi-Fi

WiFi 6 (802.11ax)

CPU Cores

4

LAN Ports

3

At a glance

Highlights

Wi-Fi WiFi 6 (802.11ax)

Supports IPv4, IPv6, WiFi (802.11a), WiFi (802.11b), WiFi (802.11g), WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax)

Dual-band

2.4 GHz · 5 GHz

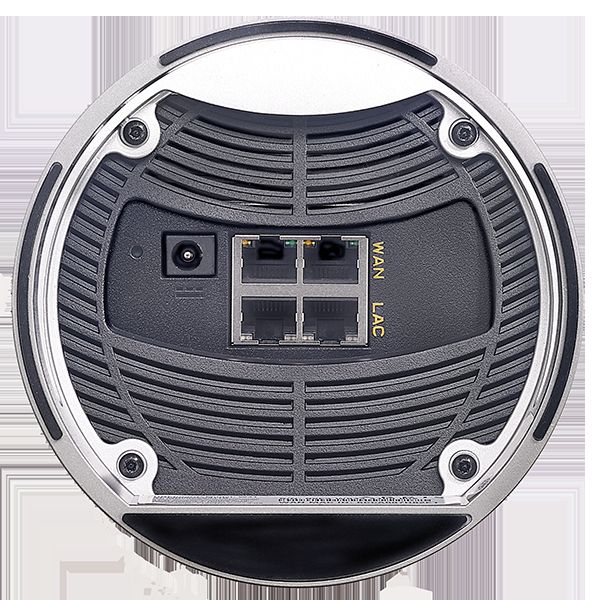

3 × Gigabit LAN

1 Gigabit WAN port

Mesh: Yes, Primary and Node

Compatible with mesh networking

Every detail

Full Specifications

General

9 specs

Manufacturer

Arris

Model

SURFboard mAX Dash (W130)

Full Name

Arris SURFboard mAX Dash (W130)

Homepage

Open website

Release Date

2019-06-24

Currently Sold

No

Manufacturer Support

No

Operating System

Proprietary OS

Mesh Integration

Yes, Primary and Node

Hardware

3 specs

Processor Speed (MHz)

1800

CPU Cores

4

Internal Antennas

8

Connectivity

12 specs

Network Standards

IPv4 IPv6 WiFi (802.11a) WiFi (802.11b) WiFi (802.11g) WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax)

Operating Modes

Router

2.4 GHz Support

Yes

5 GHz Support

Yes

6 GHz Support

No

Gigabit WAN Ports

1

Gigabit LAN Ports

3

LAN Aggregation

Yes

WAN Aggregation

Yes

WAN Connection Types

Automatic IP PPPOE Static IP

Cable Modem

No

Fibre Modem

No

Core Features

6 specs

Smart Home Integrations

Alexa

Mobile App

SURFboard Central

WPS Button

No

Reset Button

Yes

Power Switch

No

LED Switch

No

Physical

12 specs

Weight (g)

840.00

Length (mm)

127.00

Width (mm)

127.00

Height (mm)

245.00

110V Power Supply

Yes

220V Power Supply

Yes

Horizontal Positioning

No

Vertical Positioning

Yes

Wall Mountable

No

Package Content

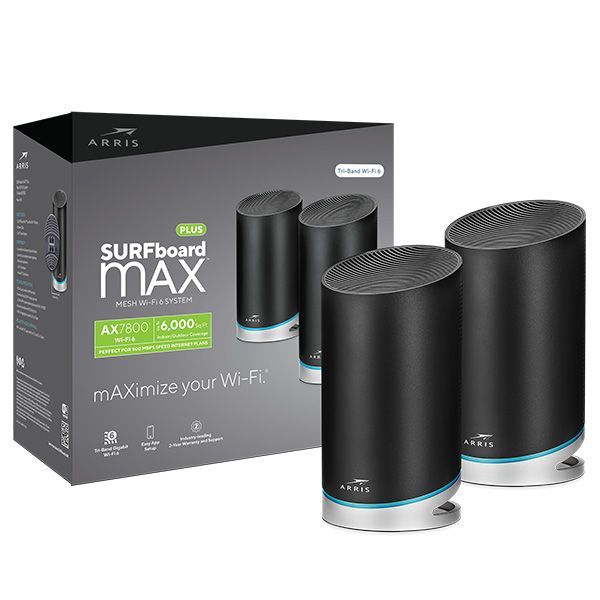

2 SURFboard mAX Routers, 2 Power Adapters, Ethernet Cable, Quick Start Guide

Warranty (Years)

2

Warranty Details

2 Year Limited Warranty

Features Matrix

all software features at a glance

Wi-Fi

IPv6 MU-MIMO Encryption UTF-8 SSID Guest Network WPS MAC Filter Scheduler Airtime Fairness RADIUS Server Universal Beamforming Explicit Beamforming IGMP Snooping

QoS & Traffic

Parental Control Adaptive QoS Traditional QoS Bandwidth Monitor Bandwidth Limiter Traffic Monitor Traffic Analyzer Website History Gaming Acceleration

WAN & LAN

Dual WAN 3G/4G Dongle Android Tethering Port Forwarding DDNS DMZ NAT Passthrough Port Triggering DHCP Server IPTV LAN Link Aggregation

USB & Storage

File System HDD Hibernation Safely Remove Download Master Media Server Time Machine Samba FTP Shared Folder Cloud Access

Admin & Security

Firewall Wake on LAN SSH Access Config Backup/Restore Diagnosis Tools Feedback System System Log Antivirus Site Blocking Auto Firmware Update
