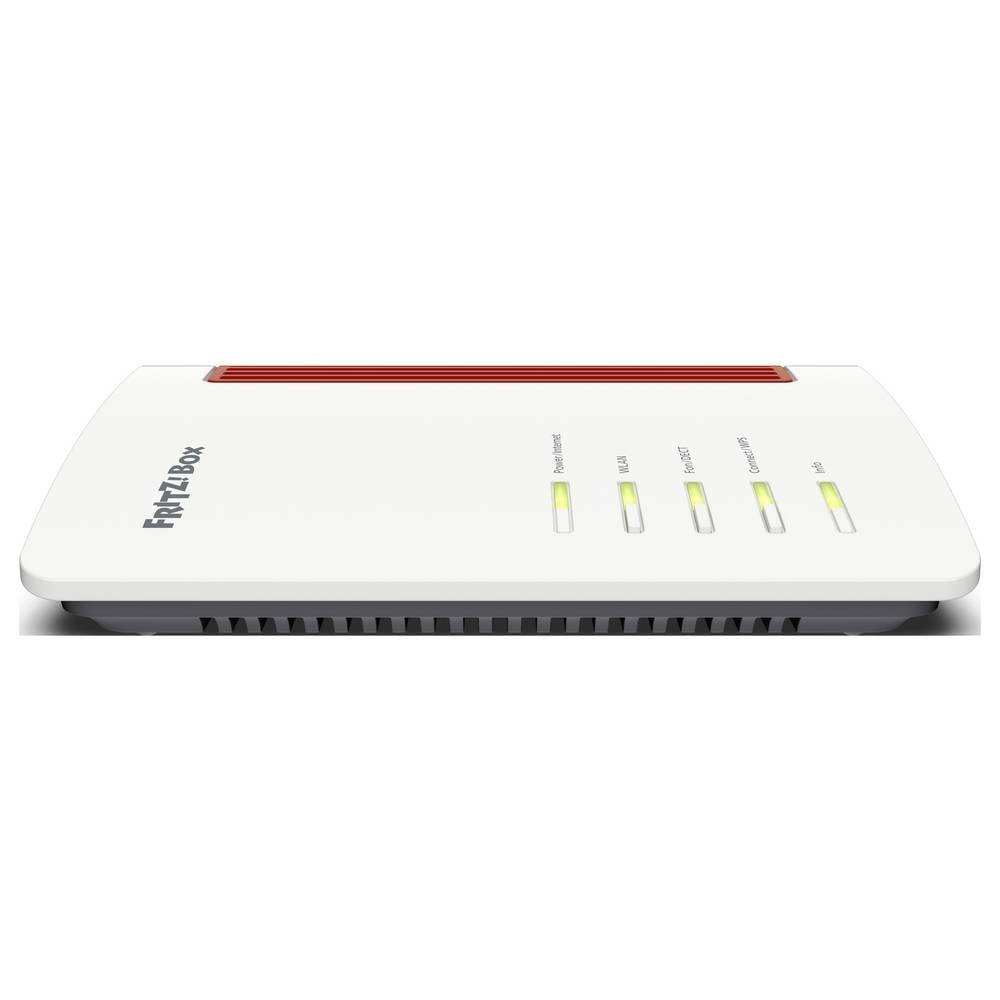

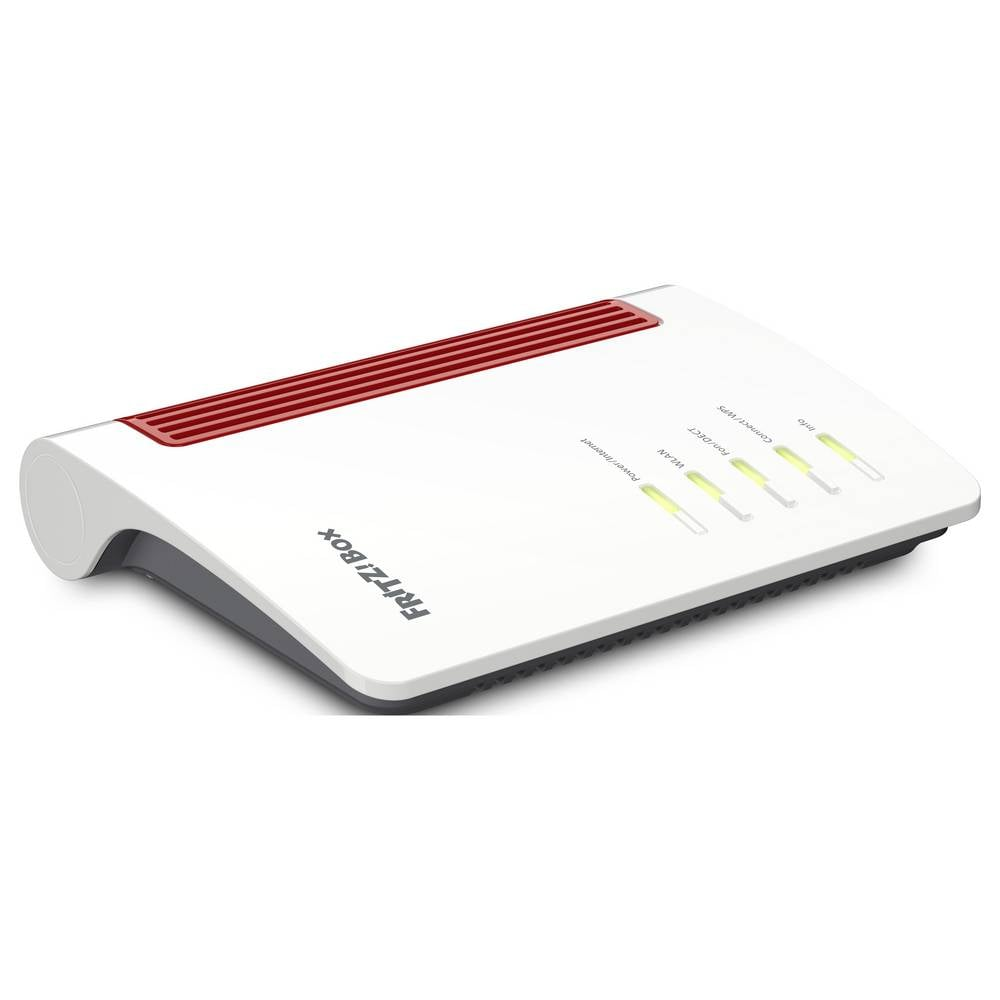

FRITZ!Box 4630

Name: FRITZ!Box 4630
Brand: Fritz!
SKU: FRITZ!Box 4630

Compact WiFi 7 modem router ideal for fiber connections, featuring a 2.5 Gbps WAN port, dual-band Wi-Fi 7, and integrated telephony functions.

Wi-Fi

WiFi 7 (802.11be)

LAN Ports

At a glance

Highlights

Wi-Fi WiFi 7 (802.11be)

Supports IPv4, IPv6, WiFi (802.11a), WiFi (802.11g), WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 7 (802.11be)

Dual-band

2.4 GHz · 5 GHz

2 × Gigabit LAN

1 Gigabit WAN port

Mesh: Yes, Primary and Node

Compatible with mesh networking

Built-in VPN

Server: IPSec, WireGuard

Every detail

Full Specifications

General

8 specs

Manufacturer

Fritz!

Model

FRITZ!Box 4630

Full Name

FRITZ!Box 4630

Homepage

Open website

Currently Sold

Yes

Manufacturer Support

Yes

Operating System

Proprietary OS

Mesh Integration

Yes, Primary and Node

Hardware

1 spec

Internal Antennas

Connectivity

12 specs

Network Standards

IPv4 IPv6 WiFi (802.11a) WiFi (802.11g) WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 7 (802.11be)

Operating Modes

Router

2.4 GHz Support

Yes

5 GHz Support

Yes

6 GHz Support

Gigabit LAN Ports

LAN Aggregation

Yes

WAN Aggregation

USB Ports

USB-A (3.0) (1)

WAN Connection Types

Automatic IP L2TP PPPOE PPTP Static IP

Cable Modem

Fibre Modem

Core Features

6 specs

VPN Servers

IPSec WireGuard

Mobile App

MyFRITZ!

WPS Button

Yes

Reset Button

Yes

Power Switch

LED Switch

Yes

Physical

11 specs

Weight (g)

490.00

Length (mm)

43.00

Width (mm)

207.00

Height (mm)

150.00

110V Power Supply

Yes

220V Power Supply

Yes

Horizontal Positioning

Yes

Vertical Positioning

Wall Mountable

Yes

Package Content

FRITZ!Box 4630, Power adapter, LAN cable, Installation guide

Warranty (Years)

Features Matrix

all software features at a glance

Wi-Fi

IPv6 MU-MIMO Encryption UTF-8 SSID Guest Network WPS MAC Filter Scheduler Airtime Fairness RADIUS Server Universal Beamforming Explicit Beamforming IGMP Snooping

QoS & Traffic

Parental Control Adaptive QoS Traditional QoS Bandwidth Monitor Bandwidth Limiter Traffic Monitor Traffic Analyzer Website History Gaming Acceleration

WAN & LAN

Dual WAN 3G/4G Dongle Android Tethering Port Forwarding DDNS DMZ NAT Passthrough Port Triggering DHCP Server IPTV LAN Link Aggregation

USB & Storage

File System HDD Hibernation Safely Remove Download Master Media Server Time Machine Samba FTP Shared Folder Cloud Access

Admin & Security

Firewall Wake on LAN SSH Access Config Backup/Restore Diagnosis Tools Feedback System System Log Antivirus Site Blocking Auto Firmware Update

About these specifications

Specifications are compiled from Fritz!'s official product documentation and publicly available technical datasheets. All trademarks, product names, and imagery are the property of their respective owners; RouterArena is not affiliated with or endorsed by the manufacturer.

Spotted an inaccuracy? Let us know — we update pages as new information becomes available.
